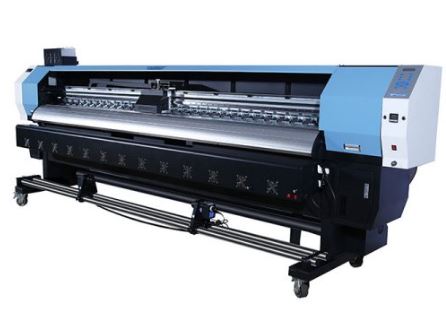

| Model | YF-3200D |

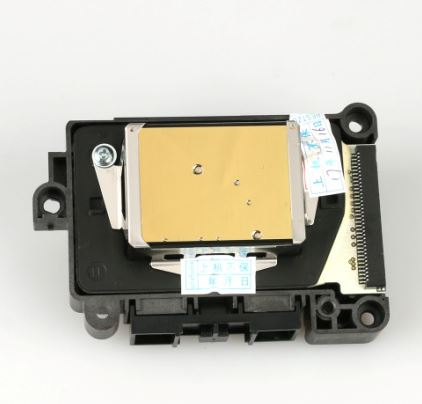

| Printhead | DX5*2 PCS |
| Print Speed (sqm/h) | 4 pass : 40㎡/H | 6 pass: 34㎡/H | 8 pass: 17㎡/H |
| Print Mode | CMYK |
| Print Width | 3000mm |
| Print Resolution | 1440 DPI |
| Media Type | |
| Media Thickness | Max 3 mm |
| Ink Type | |
| Special Ink | |
| Curing System | Heating Dryer+Cooling Fan |
| File Format | TIFF/PDF/JPEG/EPS/AI/Adobe Postscript Level 3 |
| RIP | Ultra Print V4.4 YIFANG Version/Photoprint/Maintop |
| Data Connector | USB 3.0 |
| Power | 220VAC(±10%) Single Phase，50/60 HZ |
| Power Consumption | 700W(10A) |
| Machine Size | 4500mm(L)*1100mm(W)*1300mm(H)/750KG |
| Packing Size | 4700mm(L)*1360mm(W)*1480mm(H)/850KG |
| Environment Requirement | Separated, clean, low dust, well-ventilated |
| Environmental temperature | 20℃-30℃ |
| Relative humidity | 40%-60% (Non-condensation) |
| Ventilation | Overhead exhaust fan is recommended, gas displacement:600cfm |
| 3m (10 feet) printing width | |
| Max 1440dpi resolution | |
| Single Epson DX7 print head installed (EPS DX5 and EPS XP600 optional) | |
| Auto-height measurement system | |
| Auto clean & Auto capping system |
