| Model |

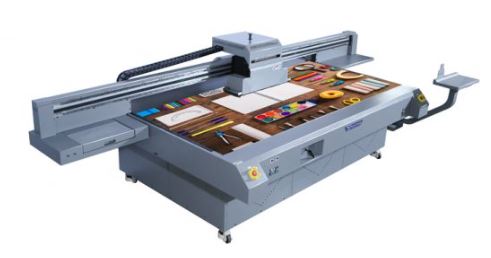

YF-2512F UV Flatbed Printer |
| Printhead |
Ricoh GEN5 Grey Level Industrial Print Head |
| Print Head number |
3-8 |
| Print Mode |
(3 Printheads) CMYK + w | (4 Printheads) CMYK + 2W, CMYY + CMYK, CMYK LCLM +W, CMYK +W +V | (5 Printheads) CMYK + w, CMYK LCLM + 2W, CMYK + 2W +V, CMYK + SM +SY +W, CMYKLCLM+W +V | (6 Printheads) CMYK + 2W, CMYK + CMYK + 2W, CMYK + W +V, CMYK LCLM +2W + v, CMYK+SM +SY +2W1 | (7 Printheads) CMYK +2W + v, CMYK +SM +SY +WI | (8 Printheads) CMYK +SM +SY + 2w, CMYK + CMYK, CMYK + CMYK + CMYK + CMYK |
| Print Width |
2400MM*1300MM |
| Print Speed (sqm/h) |
4 pass 40㎡/H | 6 pass 34㎡/H | 8 pass 20㎡/H |
| Print Resolution |
720*1800 DPI |
| Media Type |
Glass, Acrylic, Wood, Ceramic, Metal Sheet, PVC Sheet, Plastic etc. |
| Media Thickness |
Max.80 mm |
| Ink Type |
UV Curing Ink（None VOC) |
| Special Ink |
Optional White Ink or Varnish |
| Curing System |
LED Curing Light (Low heat, environmental protection, energy saving, long life) |
| File Format |
TIFF/PDF/JPEG/EPS/AI/Adobe Postscript Level 3 |
| RIP |
Photoprint/Onyx/Caldera/Colorget |
| Data Connector |
USB 3.0 |
| Power |
220VAC(±10%) Single Phase，50/60 HZ |
| Power Consumption |
5.5KW(30A) |
| Machine Size |
4750MM(L)*2100M(W)/1400(H)/1500KG |
| Packing Size |
4900MM(L)*2280MM(H)*1750MM(H) |
| Environment Requirement |
Separated, clean, low dust, well-ventilated |
| Environmental temperature |
20℃-30℃ |
| Relative humidity |
40%-60% (Non-condensation) |
| Ventilating Device |
Overhead exhaust fan is recommended, gas displacement:600cfm |
