| Models | 1700, 1702, 1704 |
| Printhead | DX5*1 PCS |
| Print Speed (sqm/h) | 4 pass : 40㎡/H | 6 pass: 34㎡/H | 8 pass: 17㎡/H |
| Print Mode | CMYK |
| Print Width | 1600mm |
| Print Resolution | 1440 DPI |
| Media Type | Vinly，Flex Banner，Mesh，One Way Vision,Paper，Textile，Wall Paper，Coated Banner，Lint-free Cloth,Photo Paper etc. |
| Media Thickness | Max 3 mm |
| Ink Type | EPSON UV Ink |
| Special Ink | White Ink |
| Curing System | LED Water Cooling |
| File Format | BMP/TIFF/PDF/JEPG |
| RIP | Ultra Print V4.4 YIFANG Version/Photoprint/Maintop |
| Data Connector | USB 3.0 |
| Power | 220VAC(±10%) Single Phase，50/60 HZ |
| Power Consumption | 2200W(10A) |
| Machine Size | 2500mm(L)*800mm(W)*1200mm(H)/220KG |
| Packing Size | 2600mm(L)*750mm(W)*700mm(H)/300KG |
| Environment Requirement | Separated, clean, low dust, well-ventilated |
| Environmental temperature | 20℃-30℃ |
| Relative humidity | 40%-60% (Non-condensation) |
| Ventilation | Overhead exhaust fan is recommended, gas displacement:600cfm |
| 6m (5.2 feet) printing width | |
| Max 1440dpi resolution | |
| Single Epson DX5 print head installed (EPS DX7 optional) | |
| Auto-height measurement system | |
| Auto clean & Auto capping system | |
| Eco-friendly LED UV lamp curing system |

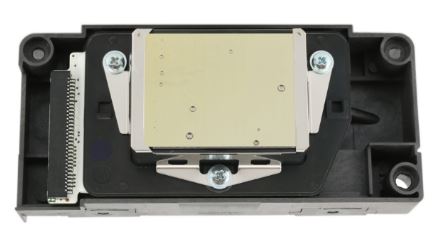

The Epson DX5 print head UV inkjet printer is known as its small droplet and high resolution of 1440 DPI. It boasts stable and durable functionality.
