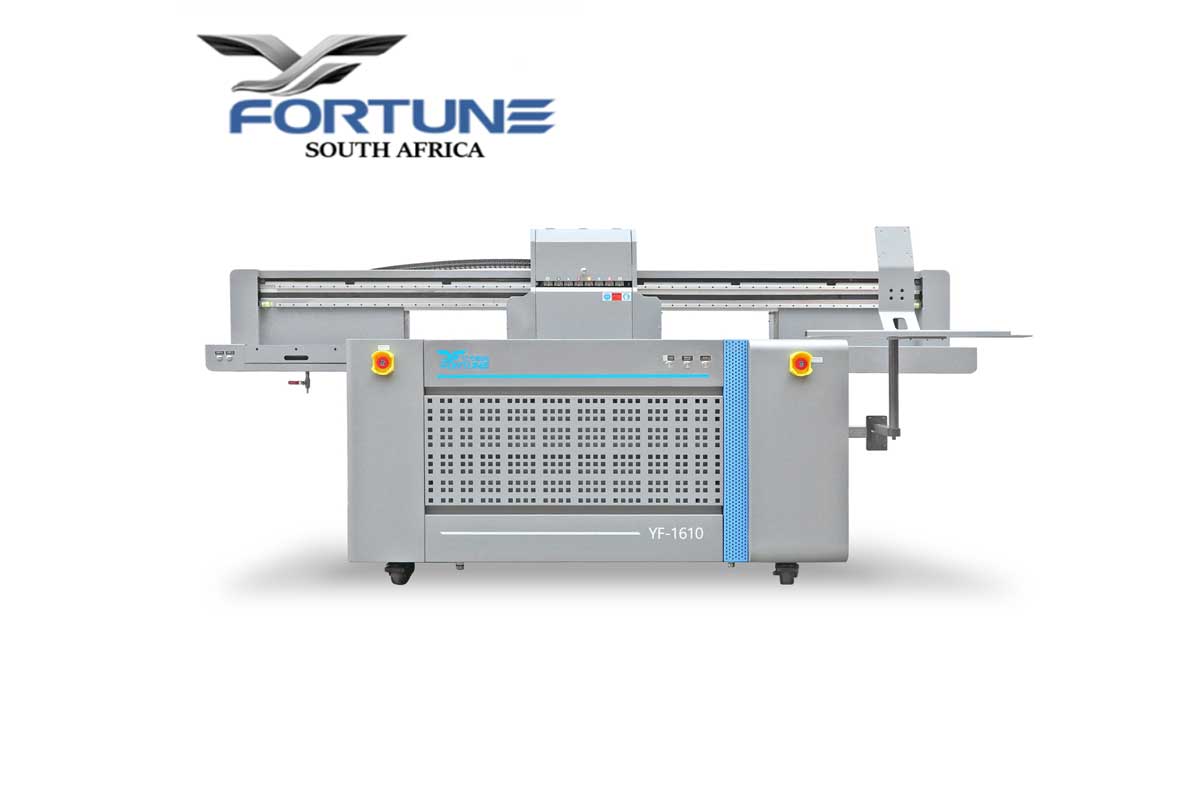

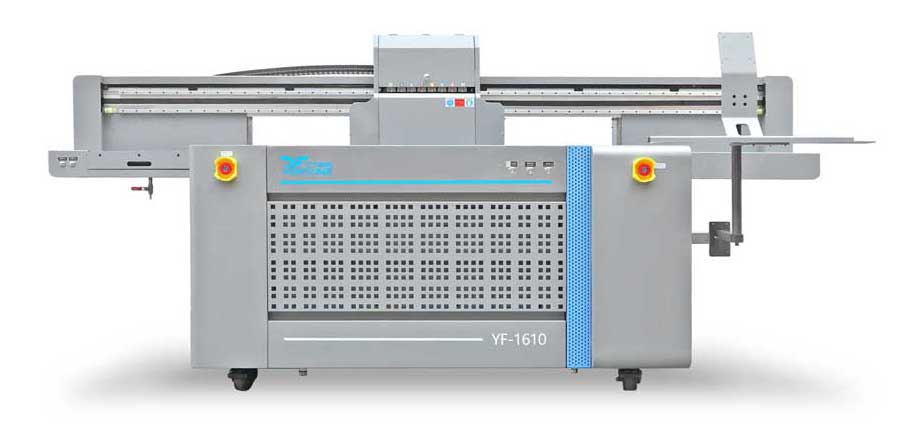

| Model | YF-1610TUV Flatbed Printer |
| Printhead | Toshiba CE4 Industrial Print Head |
| Print Head number | 2-8 |
| Print Mode | (4 Printheads) CMYK | (5 Printheads) CMYK + w | (6 Printheads) CMYK + 2W, CMYK LC LM | (7 Printheads) CMYK +3W, CMYK LC LM+W | (8 Printheads) CMYK +CMYK |
| Print Width | 1600MM*1000MM |
| Print Speed (sqm/h) | 6 pass 34㎡/H | 8 pass 20㎡/H |
| Print Resolution | 720*1800 DPI |
| Media Type | Glass, Acrylic, Wood, Ceramic, Metal Sheet, PVC Sheet, Plastic etc. |
| Media Thickness | Max.150 mm |
| Ink Type | UV Curing Ink（None VOC) |
| Special Ink | Optional White Ink or Varnish |
| Curing System | UV LED Curing Light (Low heat, environmental protection, energy saving, long life) |
| File Format | TIFF/PDF/JPEG/EPS/AI/Adobe Postscript Level 3 |
| RIP | Photoprint/Onyx/Caldera/Colorget |
| Data Connector | USB 3.0 |
| Power | 220VAC(±10%) Single Phase，50/60 HZ |
| Power Consumption | 3.5KW(30A) |
| Machine Size | 3200 MM(L)*1700 MM(W)/*1400 MM(H) |
| Packing Size | 3500 MM(L)*2000 MM(H)*1600 MM(H) |
| Environment Requirement | Separated, clean, low dust, well-ventilated |
| Environmental temperature | 20℃-30℃ |
| Relative humidity | 40%-60% (Non-condensation) |
